27DX-6W Series
YDS
6W 1.5KV Isolation 10:1 Wide Input Voltage SIP8 DC-DC Power Conversion
10:1Wide Input Voltages Range.
High Efficiency up to 88%.
Regulated Output Types.
Low Ripple and Noise.
Internal SMD Construction.
1.5KVDC Isolation.
Operating Temperature:-40°C to +85°C.
Industry Standard Pinout.
Continuous Short Circiut Protection with Current Foldback.
| Part Number | Input Voltage Range | Output Voltage Range | Output Current | Efficiency | Capacitive Load(μF) |
|---|---|---|---|---|---|
| Vdc | Vdc | mA | %Typ | Max. | |
| 27DX-24S03R6W | 6-60 | 3.3 | 1600 | 85 | 1000 |
| 27DX-24S05R6W | 6-60 | 5 | 1200 | 88 | 1000 |
| 27DX-24S09R6W | 6-60 | 9 | 667 | 85 | 820 |
| 27DX-24S12R6W | 6-60 | 12 | 500 | 87 | 680 |
| 27DX-24S15R6W | 6-60 | 15 | 400 | 87 | 680 |
| 27DX-24S24R6W | 6-60 | 24 | 250 | 87 | 330 |
Note:
1. 50% load when Vin is less than 9Vdc.
2. Ripple and ripple noise is measured by using test board with ceramic capacitor 1 μF at 50mm from output pins.
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | Vo, Io Nom | 10:1 | |||
| Surge Voltage(100ms max) | 76 | Vdc | |||
| Input Current | LOAD:0% | 5 | mA | ||
| Start-up Time | 6 | Vdc | |||
| Start-up Time | Nominal input voltage & Nominal load | 20 | ms | ||
| CTRL | Module on | 0 ~ 0.8Vdc or open circuit | |||
| Module off | 2.5 ~ 12Vdc | ||||
| Filter | Capacitor | ||||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 100% full load | ± 3 | % | ||
| Line Regulation | Regulated | ± 0.5 | % | ||
| Load Regulation | Regulated | ± 0.8 | % | ||
| Ripple & Noise | BW=DC To 20MHz | 300 | mVp-p | ||
| Temperature Coefficient | 100% Load | ± 0.02 | ± 0.03 | %/℃ | |
| Over-current Protection | 9~60Vdc | 110 | 250 | %Io | |
| Over-voltage Protection | 9~60Vdc | 110 | 160 | %Vo | |
| Short Circuit Protection | 9~60Vdc | Continuous, Recovers automatically after fault condition is removed | |||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Isolation Voltage | Input / Output | 1500Vdc/ 0.5mA/60Sec | |||
| Switching Frequency | Full load, nominal input | 220 | KHz | ||
| Operating Temperature | -40 | +85 | ℃ | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case Material | DAP | ||||
| MTBF | MIL-HDBK-217F @25℃ | 1500000 | Hours | ||
| Weight | 4.5 | g | |||

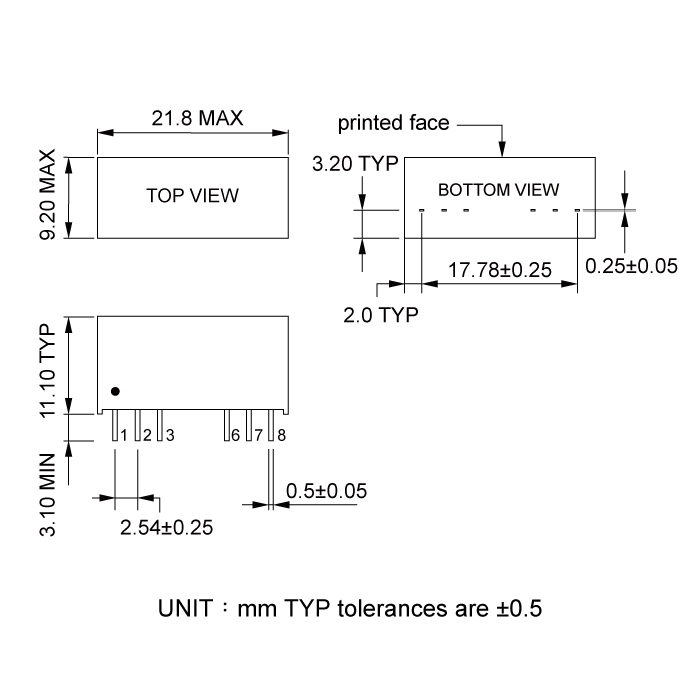

| Dimensions | 21.8 x 9.2 x 11.1 | mm | |||
Files Download
27DX-6W-Single-Series.pdf
