08D-500 Series Non Isolation 1.65 ~7.5W DC-DC Converter (Switching Regulator)

Availability:

Quantity:


Inquire Add to Basket

Model: 08D-500 Series
Brand: YDS

Product Description

1.65~7.5W DC-DC Switching Regulator

Features :

3PIN SIP Package
Pin-out compatible with LM78XX Linear
Efficiency up to 92%,Non isolated, no need for heatsink
Customized Solutions Available
UL94V-0 Package Material
Operating Temperature From -40℃ To +85℃
3 Years Warranty
Short circuit protection, Thermal Shutdown
Wide input voltage ranges, Up To 72V

Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified

Part Number	Input Range	Output Voltage	Output Current	Efficiency
Part Number	Vdc	Vdc	mA	Min. Vin (%)	Max. Vin (%)
08D-3R3-500	9 ~ 72	3.3	500	82	64
08D-05-500	9 ~ 72	5.0	500	87	70
08D-6R5-500	9 ~ 72	6.5	500	89	72
08D-09-500	14 ~ 72	9.0	500	90	79
08D-12-500	17 ~ 72	12	500	91	81
08D-15-500	21 ~ 72	15	500	91	81
08D-24-300	36 ~ 72	24	300	92	87

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Input Voltage Range	See table	9	48	72	V
Internal Input Filter	Capacitors			2.2	uF
No Load Input Current	Vin = 48V	1	5	7	mA

Output Specifications

Parameters	Conditions	Max	Units
Voltage Tolerance		±3	%
Short Circuit Protection	Hiccup, automatic recovery
Line Regulation	Vin = min to max at full load	± 0.5	%
Load Regulation	10% To 100% F.L	± 0.5	%
Ripple & Noise (without Output Capacitor)	10% TO 100% F.L BW = 20MHz	60	mVp-p
Transient response setting time	25% load step change	500	us
Capacitive load		100	uF

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Switching Frequency		150		500	KHz
Operating Temperature	With derating	-40		+85	℃
Storage Temperature		-55		+125	℃
Humidity	Non Condensing			95	%
Cooling	Natural Convection (20LFM)
Case material	Non-Conductive Black Plastic
Potting Material		Sillicone UL94V-0
Weight			4.0		g
Dimensions		11.5 x 8.5 x 17.5			mm
MTBF (+25℃)	using MIL-HDBK 217F	7395 x 10³			hours

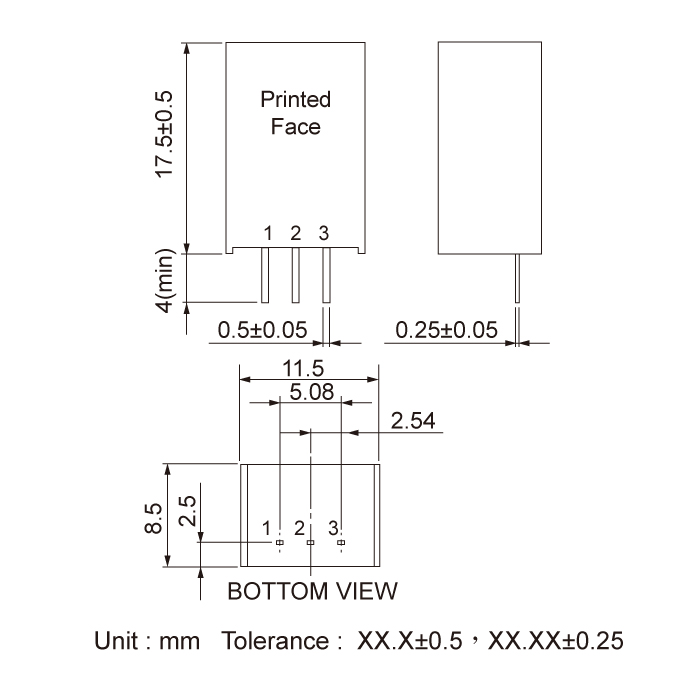

Dimension

08D-500
