072F series
YDS

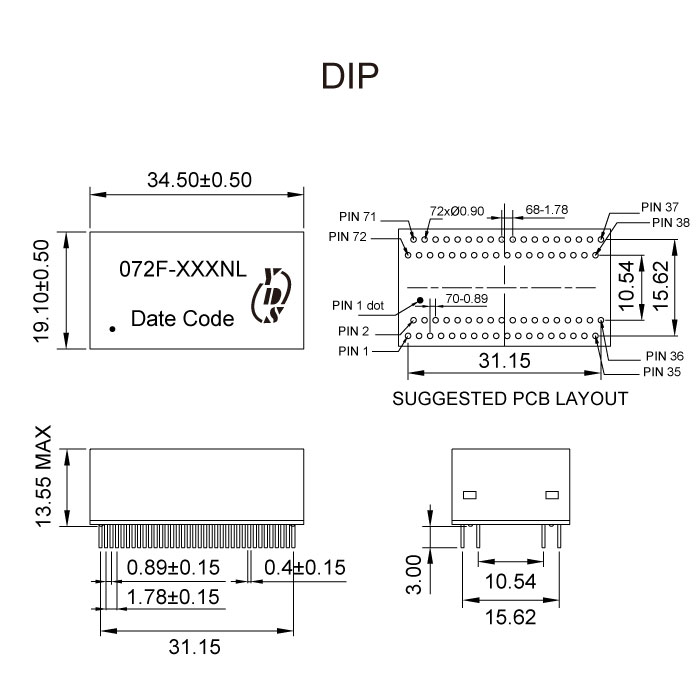

100/1000 Base-T Quad Port DIP Internet Filter
Meet IEEE 802.3 and ANSI X3.263 standards including 350 uH OCL with 8mA Bias.
| Part Number | Turns Ratio (±5%) | LK (uH MAX) | Cw/w (pF MAX) | D.C.R (ΩMAX) | Insertion Loss (dB MAX) |
|---|---|---|---|---|---|
| TX | 100KHz/ 0.2V | 100KHz/ 0.2V | ------ | 1-100 MHz | |
| 072F-01ANL | 1CT:1CT | 0.5 | 120 | 1.4 | -1.0 |
| Part Number | Return Loss (dB MIN) | Crosstalk (dB MIN) | Hipot Vrms MIN | ||||
|---|---|---|---|---|---|---|---|
| 1-30 MHz | 40 MHz | 50 MHz | 60-80 MHz | 80-100 MHz | 1-100 MHz | ||
| 072F-01ANL | -18 | -14.4 | -13.1 | -12 | -10 | -30 | 1500 |
Files Download
072F-Series.pdf
