03D-10A Series
YDS
Non-isolated High-efficiency 7.5~50W POL DC to DC Converter
Features :
SMD packages
High efficiency 93% @ 3.3V Full Load
Customized solutions available
Operating temperature from -40℃ to +85℃
3 years warranty
Input under-voltage lockout
Input range from 8.3VDC to 14.0VDC
Output current up to 10A
Output voltage programmable from 0.75VDC to 5.0VDC Via external resistor
Part Number | ON / OFF Logic | Input Range | Output Voltage | Output Current | Efficiency (%) 12Vin, 3.3Vdc @10A | |
---|---|---|---|---|---|---|
Min. Load | Max. Load | |||||
03D-12-10 | Negative | Vo (set) ≦ 3.63V Vin = 8.3-14Vdc | 0.75 ~ 5.0Vdc | 0A | 10A | 93% |
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Voltage Tolerance | Vo (set) ≦ 3.63V | 8.3 | Vin (nom) = 12V | 14 | Vdc |
Vo (set) > 3.63V | 8.3 | Vin (nom) = 12V | 13.2 | Vdc | |
Input Current | Vin = 8.3 to 14.0Vdc; Io (max.) | 7 | A | ||
Input Filter (Note4) | C filter | ||||
No Load Current (Vin=12V, Io=0, Module enabled) | Vo (set) = 0.75Vdc | 40 | mA | ||
Vo (set) = 5.0Vdc | 100 | mA | |||
Under Voltage Lockout | Start-up Voltage | 7.9 | V | ||
Shutdown Voltage | 7.8 | V |
Input reflected ripple current 5 ~ 20MHz, 1uH source impedance: 20mAp-p
Parameters | Conditions | Min | Typ | Max | Units | |
---|---|---|---|---|---|---|
Output current | 10 | A | ||||
Voltage Tolerance | Full load and Vin (nom.) | ±2 | % | |||
Minimum load | 0 | A | ||||
Line Regulation | Vin = Vin (min) to Vin (max) at Full Load | ± 0.3 | % | |||
Load Regulation | No Load to Full Load | ± 0.4 | % | |||
Ripple & Noise (Note2) | 20MHz bandwidth | 75 | mVp-p | |||
Dynamic load response (Note 2) | ΔIo / Δt = 2.5A/uS, Vin (nom) | Peak deviation | 200 | mV | ||
Load change step (25% to 100% or 100% to 25% of Io (max) | Setting time (Vo < 10% peak deviation) | 25 | uS | |||
Dynamic load Response (Note 3) | ΔIo / Δt = 2.5A/uS, Vin (nom) | Peak deviation | 100 | mV | ||
Load change step (25% to 100% or 100% to 25% of Io (max)) | Setting time (Vo < 10% peak deviation) | 25 | uS | |||
Output current limit | 200 | % | ||||
Output short-circuit current | Hiccup, automatic recovery | |||||
External load capacitance | ESR ≧ 1mΩ | 1000 | uF | |||
ESR ≧ 10mΩ | 5000 | uF | ||||
Output voltage overshoot-startup | Vin = Vin (min) to Vin (max); F.L | 1 | % | |||
Voltage adjustability (see fig.1) | 0.7525 | 5.0 | V |
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Switching Frequency | 300 | KHz | |||
Isolation voltage | None | ||||
Efficiency | See table | ||||

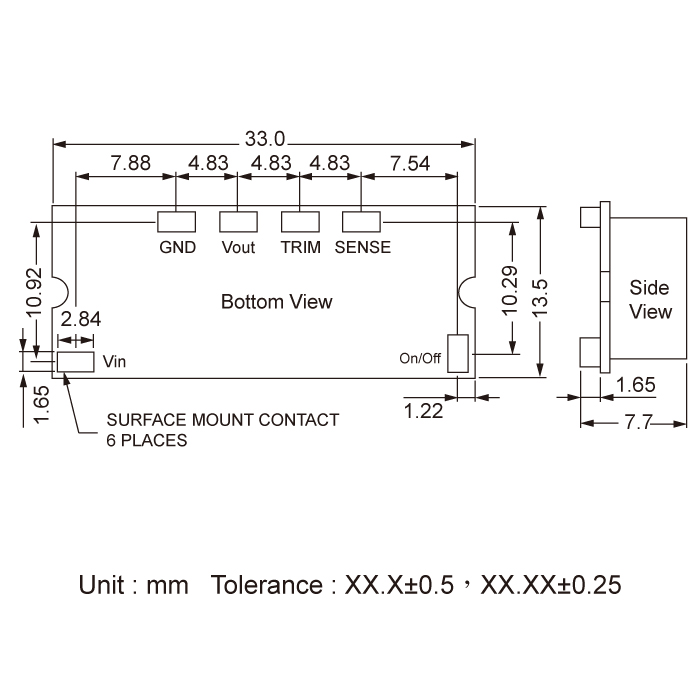

Dimensions | 33.0 x 13.5 x 7.7 | mm | |||
Weight | 6.0 | g | |||
MTBF (Note 1) | MIL-HDBK-217F | 1.048 x 106 | hrs |
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Operating temperature range | with derating | -40 | +85 | ℃ | |
Storage temperature range | -55 | +125 | ℃ | ||
Thermal shock | MIL-STD-810F | ||||
Over temperature protection | +125 | ℃ |
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Remote ON/OFF | |||||
Negative logic (standard) | ON = 0V < Vr < 0.3V@IIN | 10 | uA | ||
OFF=2.5V < Vr < Vin (Max)@IIN | 1 | mA | |||
Input current of Remote control pin | 0.01 | 1.0 | mA | ||
Remote off state input current Nominal Vin | 2.0 | mA | |||
Remote sense range | 0.5 | V | |||
Rise time (Time for Vo to rise from 10% to 90%of Vo(set)) | 6 | ms | |||
Turn-on delay time | Case 1 (Note 5) | 3 | ms | ||
Case 2 (Note 6) | 3 | ms |
