02D-6A Series
YDS
Non-Isolated 4.5~19.8W POL DC to DC Converter
Features :
SIP Packages
High Efficiency 91% @5.0Vin 3.3V ,Full Load
93% @12.0Vin 3.3V ,Full Load
Customized Solutions Available
Operating Temperature From -40℃ to +85℃
3 Years Warranty
Input Under-Voltage Lockout
Input Range 2.4VDC To 5.5VDC, 8.3VDC to 14VDC
Output Current Up to 6A
Output Voltage Programmable from 0.75VDC to 3.3VDC,0.75VDC To 5VDC Via External Resistor
| Part Number | ON / OFF Logic | Input Range | Output Voltage | Output Current | Efficiency (%) 3.3Vdc @6A | |
|---|---|---|---|---|---|---|
| Min. Load | Max. Load | |||||
| 02D-05-06S | Positive (option) Negative (standard) | 2.4 ~ 5.5 Vdc Vin (min) = Vo (Set) +0.5 | 0.75 ~ 3.3Vdc | 0A | 6A | 91% @5.0Vin |
| 02D-12-06S | Vo (set) < 3.63V Vin=8.3~14Vdc Vo (set) > 3.63V Vin=8.3~13.2Vdc | 0.75 ~ 5.0Vdc | 93% @12Vin | |||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 05 Series Vo (set) | 2.4 | 5 | 5.5 | Vdc |
| 12 Series Vo (set) | 8.3 | 12 | 14 | ||
| Input Current | Vin = Vin (min); Io = Io (max) | 6 | A | ||
| Input Filter (Note4) | C filter | ||||
| No Load Current | Vo (set) = 0.75 Vdc | 20 @Vin = 5 | mA | ||
| Vo (set) = 0.75 Vdc | 19 @Vin = 12 | ||||
| Vo (set) = 3.3 Vdc | 45 @Vin = 5 | ||||
| Vo (set) = 5.0 Vdc | 100 @Vin = 12 | ||||
| Under Voltage Lockout | Start-up Voltage | 2.2@Vin = 5 | V | ||
| 4.5@Vin = 12 | |||||
| Shutdown Voltage | 2.0 @Vin = 5 | ||||
| 3.8 @Vin = 12 |
Input reflected ripple current 5 ~ 20MHz, 1uH source impedance: 35mAp-p
| Parameters | Conditions | Min | Typ | Max | Units | |
|---|---|---|---|---|---|---|
| Output current | 6 | A | ||||
| Voltage Tolerance | Full load and Vin (min) | ±2 | % | |||
| Minimum load | 0 | A | ||||
| Line Regulation | Vin = Vin (min) to Vin (max) at Full Load | ± 0.3 | % | |||
| Load Regulation | No Load to Full Load | ± 0.5 | % | |||
| Ripple & Noise (Note2) | 20MHz bandwidth | 60 | mVp-p | |||
| Dynamic load response (Note 2) | ΔIo / Δt = 2.5A/uS, Vin (nom) | Peak deviation | 200 | mV | ||
| Load change step (25% to 100% or 100% to 25% of Io (max)) | Setting time (Vo < 10% peak deviation) | 25 | uS | |||
Dynamic load Response (Note 3) | ΔIo / Δt = 2.5A/uS, Vin (nom) | Peak deviation | 50 | mV | ||
| Load change step (25% to 100% or 100% to 25% of Io (max)) | Setting time (Vo < 10% peak deviation) | 50 | uS | |||
| Output Current Limit | 220 | % | ||||
| Output short-circuit current | Hiccup, automatic recovery | |||||
| External Load Capacitance | ESR ≧ 1mΩ | 1000 | uF | |||
| ESR ≧ 10mΩ | 3000 | uF | ||||
| Output Voltage Overshoot-Startup | Vin = Vin (min) to Vin (max); F.L | 1 | % | |||
| Voltage Adjustability (see fig.1) | 05 Series | 0.7525 | 3.3 @Vin = 5 | V | ||
| 12 Series | 0.7525 | 5.0 @Vin = 12 | V | |||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Switching Frequency | 300 | KHz | |||
| Isolation voltage | None | ||||
| Efficiency | See table | ||||

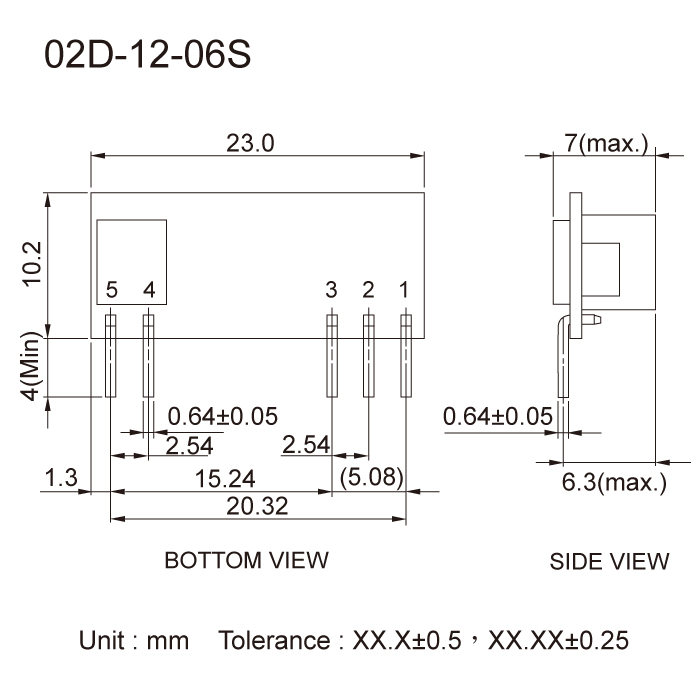

| Dimensions | As figure of marking and dimension | mm | |||
| Weight | 2.8 | g | |||
| MTBF (Note 1) | MIL-HDBK-217F | 3.247 x 106 | hrs | ||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Operating temperature range | with derating | -40 | +85 | ℃ | |
| Storage temperature range | With derating | -55 | +125 | ℃ | |
| Thermal shock | MIL-STD-810F | ||||
| Over temperature protection | +135 | ℃ | |||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Remote ON/OFF | |||||
| Positive logic (option) | ON = (Vin-4) < Vr < Vin (Max) | 10 | uA | ||
| OFF = 0V < Vr < 0.3V | 1 | mA | |||
| Negative logic (standard) | ON = 0V < Vr < 0.3V@IIN | 10 | uA | ||
| OFF = 1.5V < Vr < Vin (Max) @IIN | 1 | mA | |||
| Input current of Remote control pin | 0.01 | 1.0 | mA | ||
| Remote off state input current Nominal Vin | 5 | mA | |||
| Rise time (Time for Vo to rise from 10% to 90% of Vo (set)) | 6 | ms | |||
| Turn-on delay time | Case 1 (Note 5) | 3 | ms | ||
| Case 2 (Note 6) | 3 | ms |
Files Download
02D-6A-Series.pdf
