01D-500 Series
YDS
0.75~7.5W SIP-3 DC-DC Switching Regulator
Features :
3PIN SIP Package
Pin-out compatible with LM78XX Linear
Efficiency up to 97%,Non isolated, no need for heatsink
Customized Solutions Available
UL94V-0 Package Material
Operating Temperature From -40℃ to +85℃
3 Years Warranty
Short circuit protection, Thermal Shutdown
| Part Number | Input Range | Output Voltage | Output Current | Efficiency | |
|---|---|---|---|---|---|
| Vdc | Vdc | mA | Min. Vin (%) | Max. Vin (%) | |
| 01D-1R5-500 | 4.75-30 | 1.5 | 500 | 73 | 63 |
| 01D-1R8-500 | 4.75-34 | 1.8 | 500 | 82 | 71 |
| 01D-2R5-500 | 4.75-34 | 2.5 | 500 | 87 | 77 |
| 01D-3R3-500 | 4.75-34 | 3.3 | 500 | 91 | 81 |
| 01D-05-500 | 6.5-34 | 5.0 | 500 | 94 | 86 |
| 01D-6R5-500 | 8.0-34 | 6.5 | 500 | 95 | 88 |
| 01D-09-500 | 11-34 | 9.0 | 500 | 96 | 92 |
| 01D-12-500 | 15-34 | 12 | 500 | 97 | 94 |
| 01D-15-500 | 18-34 | 15 | 500 | 97 | 95 |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | ±3 | % | |||
| Short Circuit Protection | Hiccup, automatic recovery | ||||
| Line Regulation | 1.5V to 6.5V | 0.4 | % | ||
| 9V to 15.5V | 0.2 | % | |||
| Load Regulation | 1.5V to 6.5V (10% To 100% F.L) | 0.6 | % | ||
| 9V to 15.5V (10% To 100% F.L.) | 0.4 | % | |||
| Ripple & Noise (without Output Capacitor) | 1.5V to 6.5V (BW = DC To 20MHz) | 30 | mVp-p | ||
| 9V to 15.5V (BW = DC To 20MHz) | 40 | mVp-p | |||
| Transient response setting time | 25% load step change | 350 | us |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Switching Frequency | 330 | KHz | |||
| Operating Temperature | With derating | -40 | +85 | ℃ | |
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Natural Convection (20LFM) | ||||
| Case material | Non-Conductive Black Plastic | ||||
| Weight | 2.0 | g | |||

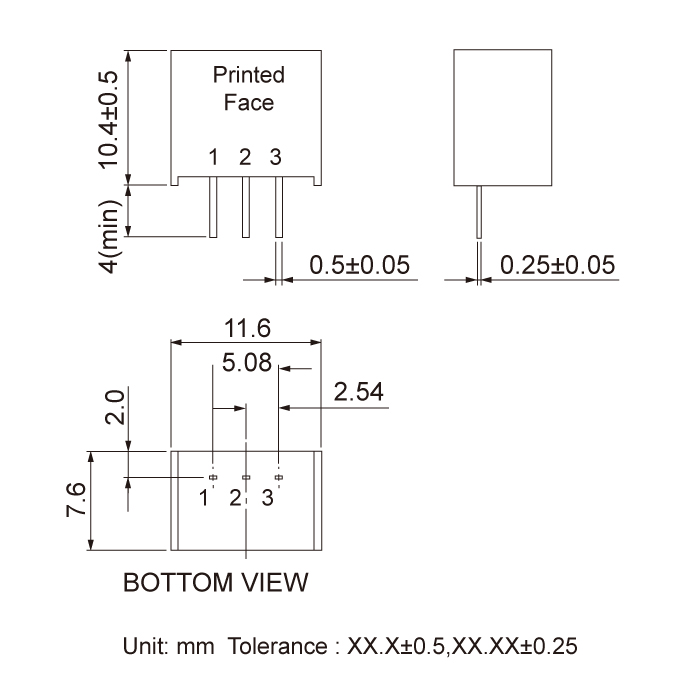

| Dimensions | 11.6 x 7.6 x 10.4 | mm | |||
| MTBF (+25℃) | using MIL-HDBK 217F | 21098 x 103 | hours | ||
| MTBF (+71℃) | using MIL-HDBK 217F | 4212 x 103 | hours | ||
01D-500-Series.pdfCertification
