01D-2A Series Non Isolation Regulated 3.6~30W POL DC-DC Converter

Availability:
Quantity:
  • 01D-2A Series
  • YDS

3.6~30W POL DC to DC Converter


Features :


3PIN SIP Package
Pin-out compatible with LM78XX Linear
Efficiency up to 96%,Non isolated, no need for heatsink
Customized Solutions Available
UL94V-0 Package Material
Operating Temperature:-40℃ to +82℃
3 Years Warranty
Short circuit protection
Wide Input Voltage Ranges 4.75~36VDC




Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified



Part Number Input Range Output Voltage Output Current Efficiency
Vdc Vdc mA Min. Vin (%) Max. Vin (%)
01D-1R8-2A 4.75-36 1.8 2000 89 80
01D-2R5-2A 4.75-36 2.5 2000 90 82
01D-3R3-2A 4.75-36 3.3 2000 90 84
01D-05-2A 6.5-36 5.0 2000 93 89
01D-6R5-2A 9.0-36 6.5 2000 93 91
01D-09-2A 12-36 9.0 2000 94 90
01D-12-2A 15-36 12 2000 95 93
01D-15-2A 18-36 15 2000 96 94



Input Specifications



Parameters Conditions Min Typ Max Units
Input Voltage Range See table 4.75 24 36 V
Internal Input Filter Capacitors   10   uF
No Load Input Current Vin = 24V   15 20 mA



Output Specifications



Parameters Conditions Min Typ Max Units
Voltage Tolerance       ±3 %
Short Circuit Protection Hiccup, automatic recovery
Line Regulation Vin = min to max at full load   ±0.5   %
Load Regulation 10% To 100% F.L   ±0.5   %
Current Limit Duty = 40%   325   %
Ripple & Noise
(without Output Capacitor)
100% F.L BW = 20MHz     100 mVp-p
Transient response setting time 25% load step change   350   us
Capacitive load ESR > 1mohm     900 uF



General Specifications



Parameters Conditions Min Typ Max Units
Switching Frequency     500   KHz
Operating Temperature With derating -40   +82
Storage Temperature   -55   +125
Humidity Non Condensing     95 %
Cooling Natural Convection (20LFM)
Case material Non-Conductive Black Plastic
Weight     4.0   g

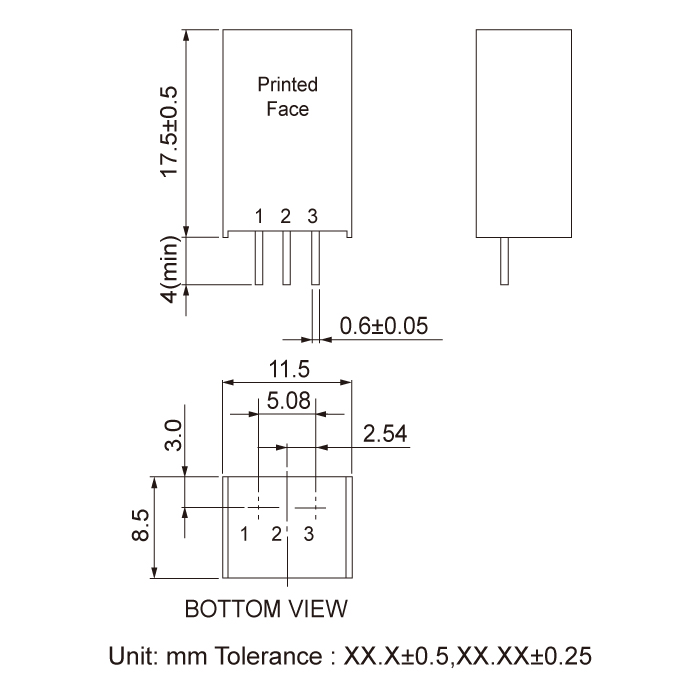

Dimensions   11.5 x 8.5 x 17.5 mm
MTBF (+25℃) using
MIL-HDBK 217F
1630 x 103 hours




 Files Download    01D-2A-Series.pdf
