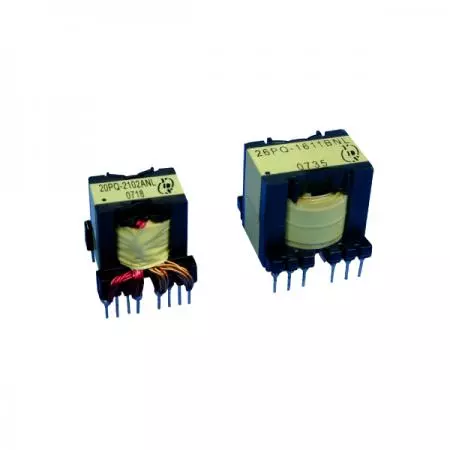

PQ Series
High Frequency PQ Transformer Component For Industrial Automation and Server & Telecom Power
High frequency switching transformer features Current sensors and is available in a variety of sizes and specification. Yuan Dean can provide high-frequency transformers of various specifications, and all are RoHS-compliant, and can be customized according to customer requirements.
Our High Power PQ Core Transformer and PQ20 PQ26 Transformer range offers DIP Type Power Transformer and Through-hole PQ Transformer solutions for computer and network equipment. As a High Frequency Switching Transformer and PQ Transformer for LLC Resonant Converter, it provides Custom PQ Transformer Design and Custom Windings PQ Transformer for AC main power and industrial control. This Telecom Grade PQ Transformer and PQ Type Ferrite Core Transformer ensures a perfect PQ Transformer Cross Reference for telecom equipment using PQ Core Inductor and Transformer technology.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
Features
- High frequency power transformer.
- High frequency switching transformer.
- Current sensors.
- Wide variety of other sizes and values available.
Applications
- computer equipment.
- Internet equipment.
- AC main power supply system.
- industrial control.
- telecom equipment.
Part Number
| 20PQ | - | 210 | 1 | A | NL |
|---|---|---|---|---|---|
| A | B | C | D | E |
A: Series
B: Inductance
C: Sequence id
D: Schematics
E: RoHS Version
Certification

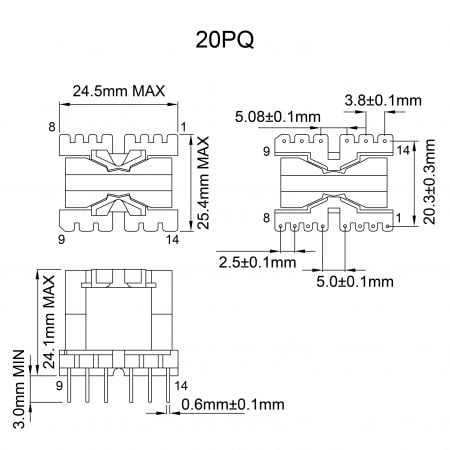

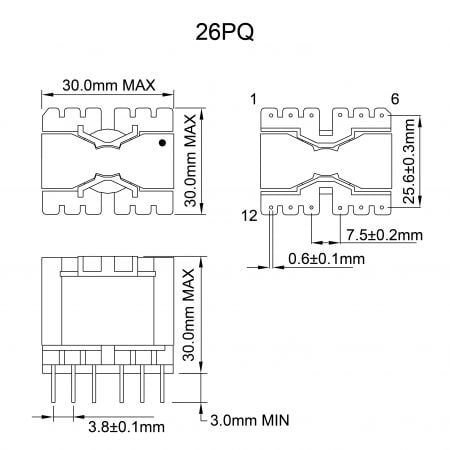

- Mechanicals and Dimensions Related Products Files Download
-
-
