AC-DC Converter Module, Medical Application, 10W Single Regulated Output Power, 2" X 1" Size, 4KVac Isolation, DIL4 Package

AC-DC Converter Module, Medical Application, 10W Single Regulated Output Power, 2" X 1" Size, 4KVac Isolation, DIL4 Package ‹ ›
AC-DC Converter Module, Medical Application, 10W Single Regulated Output Power, 2" X 1" Size, 4KVac Isolation, DIL4 Package
Product Features

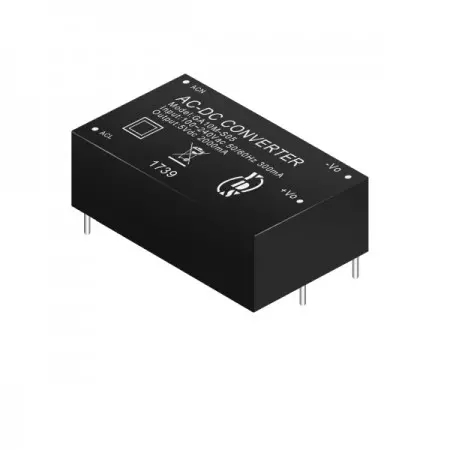

AC-DC Converter Module, Medical Application, 10W Single Regulated Output Power, 2" X 1" size, 4KVac Isolation, DIL4 Package

GA10M Series

Medical grade AC-DC converter, DIP encapsulated power For Portable medical device and Medical examination instrument

10 watt regulated output AC to DC power conversion module with 4KVac isolation voltage and universal input voltage of 80~264VAC. No-load power consumption <0.1W. GA10M series has short circuit, overload, over voltage and over temperature protection. It is designed with reference to ANSI / AAMI ES60601-1 and IEC / EN 60601-1 medical safety certification (2 X MOPP). Extremely low leakage current and no minimum load required. Suitable for a variety of medical applications such as portable medical equipment, mobile clinical workstations, medical computer monitor, etc..

Our medical grade isolated converter solutions are designed for critical healthcare applications, featuring 2xMOPP power supply standards to ensure maximum patient safety. These isolated medical ac dc converter units comply strictly with EN 60601-1 and 60601-1 certification. With low leakage current and high isolation, they provide reliable performance for sensitive medical electronics and diagnostic equipment.

The AC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 2 years after sale.

Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!

10W 4KVac Isolation Regulated Output AC-DC Converter(GA10M Series)
Features
  • Universal input 80~264VAC.
  • Medical safety design refer to (2 X MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1.
  • Suitable for BF application with appropriate system consideration.
  • No load power consumption<0.1W.
  • Extremely low leakage current.
  • EMI class B for class Ⅱ configuration.
  • Protection: short circuit/overload/over voltage/over temperature.
  • No minimum load required.
  • 2 years warranty.
  • ROHS compliant.
Applications
  • Portable medical device.
  • Mobile clinical workstaion.
  • Medical computer monitor.
  • Medical examination instrument.
Specifications typical at TA = 25°C, nominal input voltage and rated output current unless otherwise specified
Part Number Output Wattage Output Voltage Output Current Ripple & Noise Efficiency
(W) (VDC) (mA) (mV) max(Note) (TYP %)
GA10M-S05(B) 10 5 2000 100 79
GA10M-S12(B) 10.2 12 850 180 82
GA10M-S15(B) 10 15 670 180 82
GA10M-S24(B) 11 24 460 200 83

Note:

1.Suffix B= Blank or Refers to the appearance plus Base

2.Ripple & noise is measured by using 20 MHz bandwidth, measured with a 47uf paralleled with a high-frequency 0.47uf capacitor across each output by full load.

Input Specifications
Parameters Conditions Min Typ Max Units
Rated Input Voltage Vo, Io nom 100 ~ 240 Vac
Voltage Range Vo, Io nom AC in 80 264 Vac
DC in 105 370 Vdc
Line Frequency Vi nom, Io nom 47 50/60 63 Hz
Inrush Current Io nom Vi:115VAC 25 A
Vi:230VAC 45 A
Input Current
(Full load)		 0.3A (115Vac) 0.2A (230Vac)
Input Fuse VDE/UL/CCC FUSE 2.5A/250V (Slow blow)
Output Specifications
Parameters Conditions Min Typ Max Units
Output Voltage Accuracy Vi nom, Io nom 5V Models ± 3 %
12/15/24V Models ± 2 %
Minimum Load Vi nom 0 %
Line Regulation Io nom, Vi min…Vi max ± 0.3 %
Load Regulation Vi nom, Io min…Io nom ± 0.5 %
Protection Overload Above 110% rated output power
Protection type: Recovers automatically after fault condition is removed
Short circuit Recovers automatically after fault condition is removed
Over Voltage 110%-150% rated output Voltage
Protection type: Zener diode clamp
Over Temperature Protection type: Shut down o/p voltage, recovers automatically after temperature goes down
General Specifications
Parameters Conditions Min Typ Max Units
Isolation Voltage Input / Output 4KVac/ 5mA/60Secs
Isolation Resistance Input / Output,@500Vdc 100 MΩ
Operating Temperature Operating at Vi nom, Io nom -25 +85 °C
Storage Temperature Non Operational -40 +100 °C
Relative Humidity Vi nom, Io nom 95 % RH
Dimension L50.80x W25.40 x H17.02mm/ L52.70x W27.30 x H20mm
Cooling Free air convection
Certification

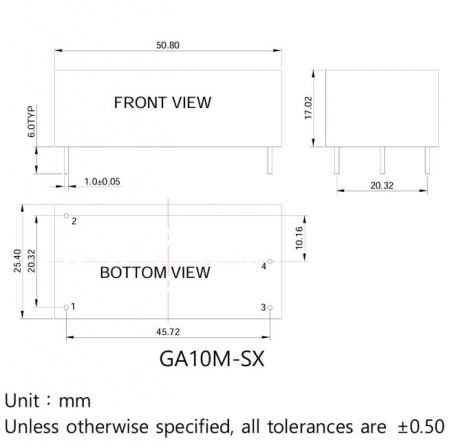

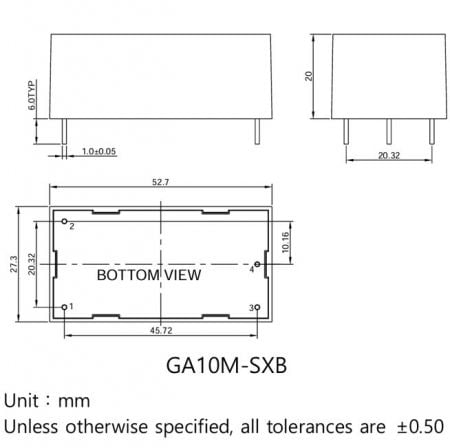

Markings and Dimensions Related Products Files Download
